ASME B16.5 Class 150 Titanium Weld Neck Flange with Raised Face and Forged Construction

  • 1
  • 2
  • 3

Brand Name : LHTi

Model Number : WN

Certification : ISO9001:2015

Place of Origin : China , Shaanxi , Baoji(The titanium valley of China)

MOQ : 1 pc

Price : $35-258 / pc

Payment Terms : L/C,T/T,D/P,D/A,Western Union

Supply Ability : 100000 pcs per month

Delivery Time : 10-15 days

Packaging Details : Standard exporting packing: protecting foam and EPE inside and plywood case outside.

Material : Titanium Gr2 Gr5 Gr7

Type : WN (weld neck flange)

Standard : ASME/ASTM B16.5

Size : 1/2''~80"

Class : Class 150 class 300 class 600 class 900 class 1500

Quality test : UT,PT etc.

MOQ : 1PC

The third party test : TUV,SGS,BV etc.

Product name : ASME 16.5 B381 Ti Gr. 2 titanium weld neck flange rf class150 WN forged flange

Contact Now

ASME 16.5 B381 Ti Gr. 2 Titanium Weld Neck Flange RF Class 150 WN Forged Flange
Product Description

High-quality ASME 16.5 B381 Ti Gr. 2 titanium weld neck flange with RF (Raised Face) Class 150 WN (Weld Neck) forged construction for superior performance in demanding industrial applications.

Key Specifications
  • Material: Available in Gr1, Gr2, Gr5, Gr7, Gr12 titanium grades
  • Standard: Compliant with ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628
  • Size Range: 1/2" to 30" NB (NPS 1/2 - NPS 24 / DN 10 - 2000)
  • Pressure Class: PN0.25~32Mpa (DIN) including PN6-PN250 and 150LB-2500LB
  • Sealing Surface: RF (Raised Face), FF (Flat Face), TG (Tongue & Groove), RJ (Ring Joint)
  • Manufacturing Technique: Precision forged and CNC machined
Functional Benefits

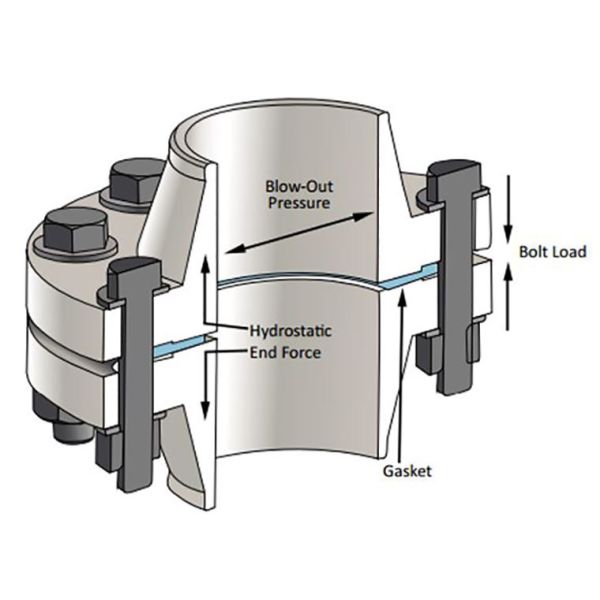

  • Forms a detachable connection when combined with gasket and bolts for versatile installation
  • Essential component for secure pipeline construction and maintenance
  • Designed for ease of use while capable of withstanding high pressure conditions
Titanium Grade Specifications
Grade Tensile Strength (min) Yield Strength (min) Elongation (%)
Gr1 (Ta1) 35 ksi / 240 MPa 20 ksi / 138 MPa 24
Gr2 (Ta2) 50 ksi / 345 MPa 40 ksi / 275 MPa 20
Gr5 (Ti6Al4V) 130 ksi / 895 MPa 120 ksi / 828 MPa 10
Gr7 (Ti-0.2Pd) 50 ksi / 345 MPa 40 ksi / 275 MPa 20
Gr9 (Ti-3Al-2.5V) 90 ksi / 620 MPa 70 ksi / 483 MPa 15
Gr12 (Ti-0.3Mo-0.8Ni) 70 ksi / 483 MPa 50 ksi / 345 MPa 18

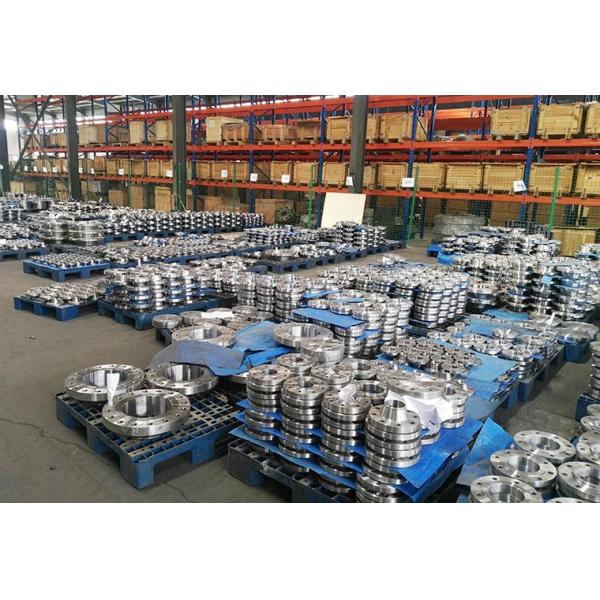

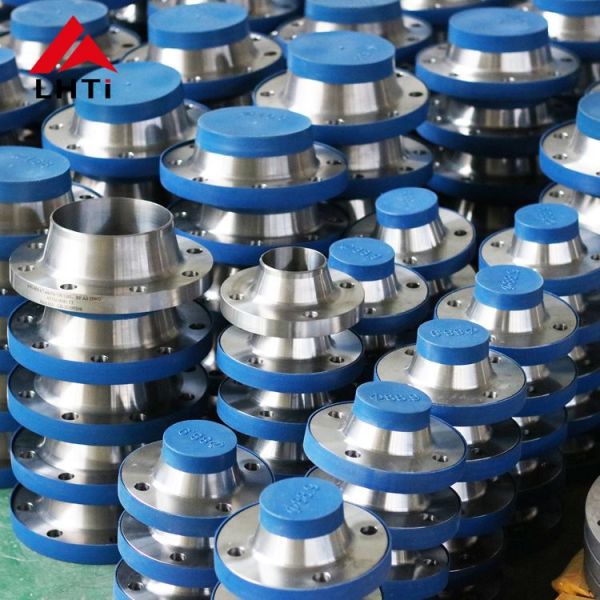

Product Images
ASME B16.5 Class 150 Titanium Weld Neck Flange with Raised Face and Forged Construction ASME B16.5 Class 150 Titanium Weld Neck Flange with Raised Face and Forged Construction ASME B16.5 Class 150 Titanium Weld Neck Flange with Raised Face and Forged Construction
